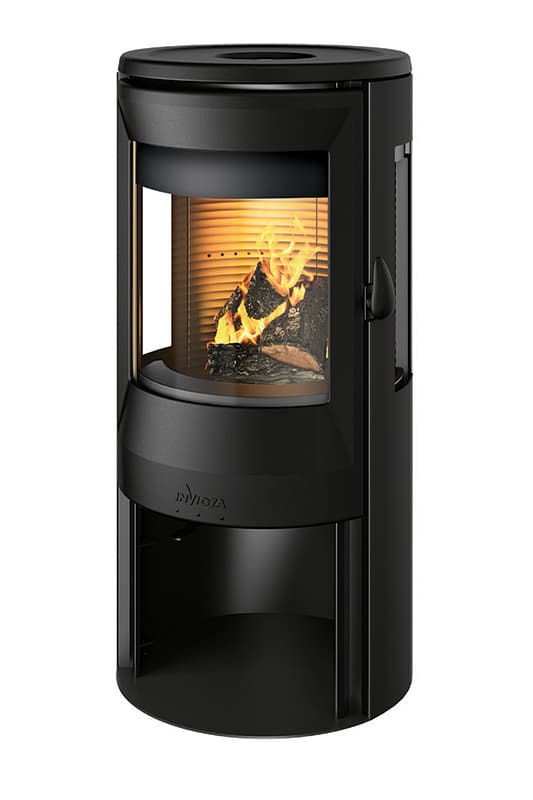

    Neosen Plus 3-glass Steel Stove – Direct Air Supply

    Admire your Neosen Plus stove from every direction…and be hypnotized by its relaxing and magnificent flames. Reap the full benefits of its outstanding heating capacity and energy efficiency.

    Reference: P948837 Category:

    Neosen Plus 3-glass Steel Stove – Direct Air Supply

    Admire your Neosen Plus stove from every direction…and be hypnotized by its relaxing and magnificent flames. Reap the full benefits of its outstanding heating capacity and energy efficiency.

    Reference: P948837 Category:
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Why this product?
    Cast iron door and top

    The thermal properties of cast iron improve the quality of combustion and the performance of the appliance. Cast iron parts are durable over time.

    Cast iron-clad combustion chamber

    In addition to its thermal properties, the cast-iron housing gives this model a unique style.

    Clean glass

    The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

    Connectable

    Can be connected directly from the wood stove’s fresh air intake to the outside or a crawlspace.

    Extended warranty 3 years

    For log products, the free 3-year warranty extension is conditional on the product being registered online.

    Intermittent

    The unit operates with regular loading of small quantities of wood. This operating method is particularly high-performing and respectful of the environment.

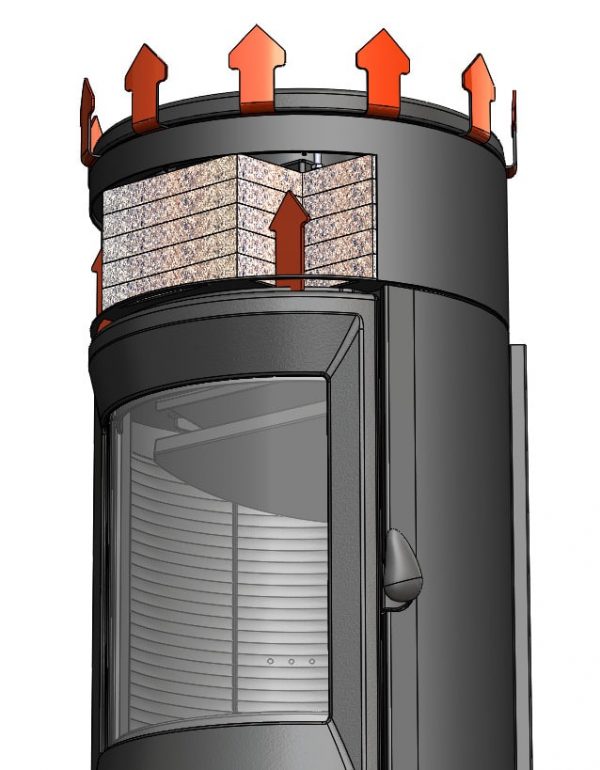

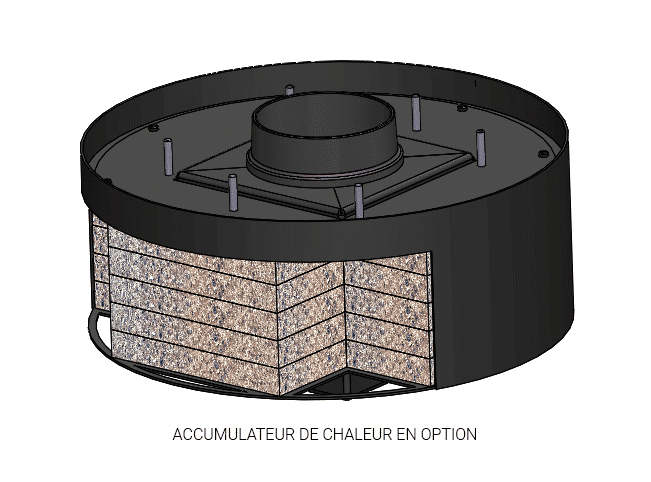

    Optional heat accumulator

    Composed of refractory bricks, the Neosen heat storage kit continues to heat your interior long after the flames have disappeared. H 234 x W 500 x D 500 mm – Option reference P696300

    Post-combustion system

    Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

    Features

    Optimal power
    8 kW
    Heating volume (m³)
    105 to 240 m³
    Heating surface (m²)
    40 – 100 m²
    Flamme verte (environmental label)
    7 stars
    Useful efficiency (%)
    81
    Seasonal efficiency – ETAS
    71
    CO (%)
    0,12 %
    CO (mg/Nm³)
    1500
    Dust (mg/Nm³)
    20 mg/Nm³
    GOC (mg/Nm³)
    110
    NOx (mg/Nm³)
    200
    Energy Efficiency Index (EEI)
    107
    Flue gas mass flow (g/s)
    7,3
    Flue gas temperature (°C)
    216
    Combustible
    Logs 25, Logs 33 cm
    Maximum log length (horizontally)
    40 cm
    Loading
    Façade
    Flue exit
    Dessus
    Flue diameter (mm)
    150 mm
    Direct Air-supply (mm)
    80 mm
    Dimensions – H * W * D (mm)
    1025 x 505 x 505
    Weight (kg)
    116 kg
    Design
    Contemporain
    Material
    Cast Iron + Steel
    Finish
    Black
    Certification
    EN 13240
    Warranty
    2 years + extension 3 years*
