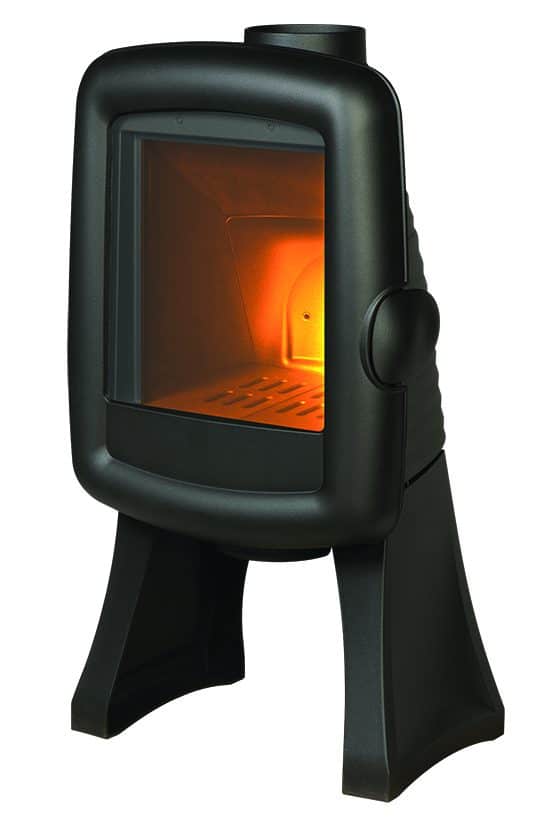

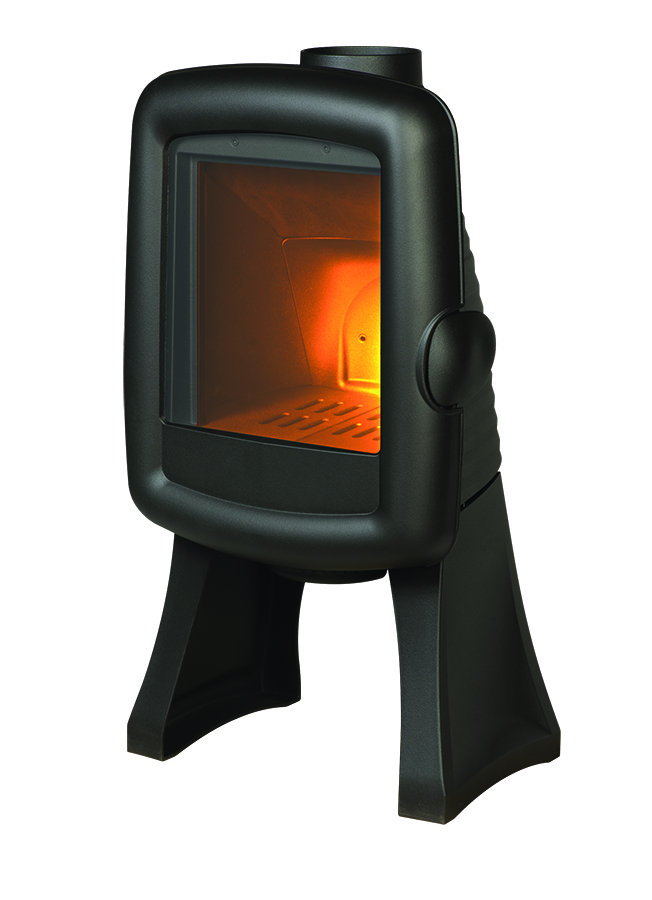

    Elo L Airtight Cast Iron Stove

    Welcome to the Elo universe! You’re now entering a warm and peaceful place. Compact and efficient, the Elo L was designed to fit easily into an existing fireplace.

    Reference: P610244 Category:

    Elo L Airtight Cast Iron Stove

    Welcome to the Elo universe! You’re now entering a warm and peaceful place. Compact and efficient, the Elo L was designed to fit easily into an existing fireplace.

    Reference: P610244 Category:
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Why this product?
    8 hour extended burning

    The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

    Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Air control

    Central combustion gearbox with a single control that offers: * simple, balanced management of all of the distributed air, * better control of flame height (min, normal, and max), * control over wood consumption, * cleaner, more efficient combustion, * a secondary air intake for more reliable protection of the glass * total shutdown of the air intake in the event of a prolonged shutdown of the unit.

    Airtight unit RT2012 / RE2020 compatible

    Ideal for low-energy consumption construction (BBC), RT2012 or RE2020. The unit is equipped with a central fresh air input on a connection nozzle:
    * no air intake in the room,
    * direct connection possible to crawl space or external air intake.

    Clean glass

    The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

    Extended warranty 3 years

    For log products, the free 3-year warranty extension is conditional on the product being registered online.

    Origine France Garantie (Made in France Guarantee)

    The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

    Post-combustion system

    Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

    Features

    Optimal power
    5 kW
    Heating volume (m³)
    65 to 150 m³
    Heating surface (m²)
    25 to 60 m²
    Flamme verte (environmental label)
    7 stars
    Useful efficiency (%)
    75
    Seasonal efficiency – ETAS
    65
    CO (%)
    0.09 %
    CO (mg/Nm³)
    1125
    Dust (mg/Nm³)
    26 mg/Nm3
    GOC (mg/Nm³)
    120
    NOx (mg/Nm³)
    153
    Energy Efficiency Index (EEI)
    99
    Flue gas mass flow (g/s)
    4,9
    Flue gas temperature (°C)
    341
    Combustible
    25 cm logs
    Maximum log length (horizontally)
    33 cm
    Loading
    Façade
    Flue exit
    Dessus
    Flue diameter (mm)
    150 mm
    Direct Air-supply (mm)
    80 mm
    Dimensions – H * W * D (mm)
    920 x 500 x 374
    Weight (kg)
    100 kg
    Design
    Contemporain
    Material
    Fonte
    Finish
    Anthracite
    Certification
    EN 13240
    Warranty
    2 years + extension 3 years*

    See all the features
