      /    /  Pellet Stoves  /  Daglan Slim 9 Ductable

    All Products

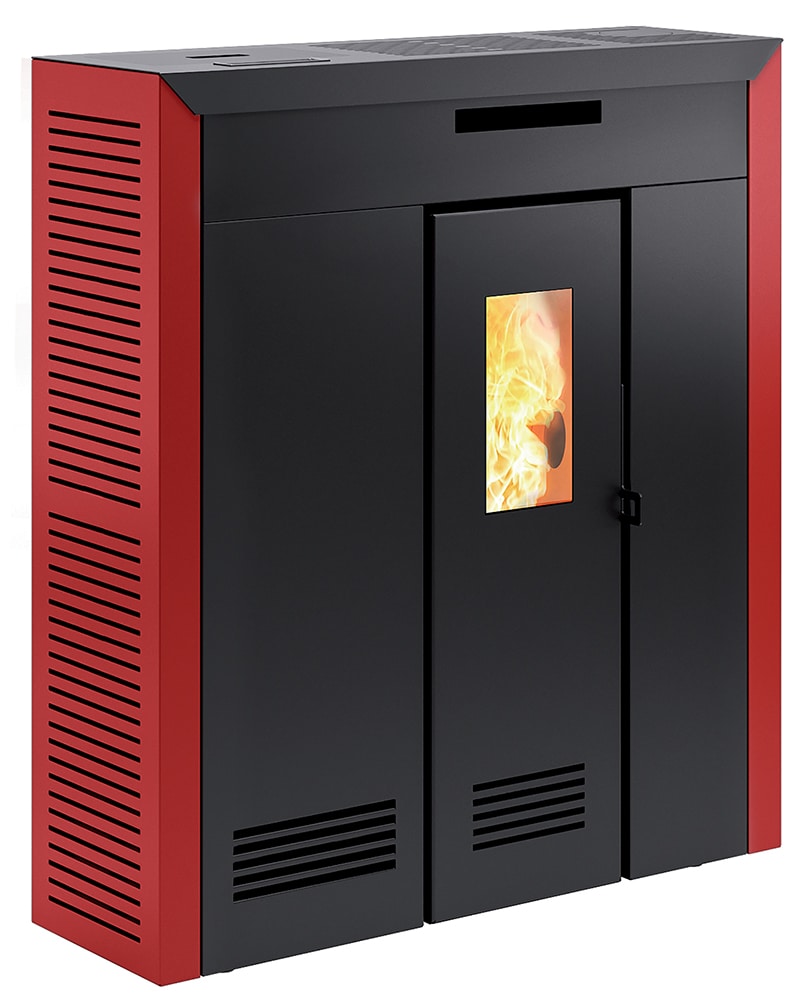

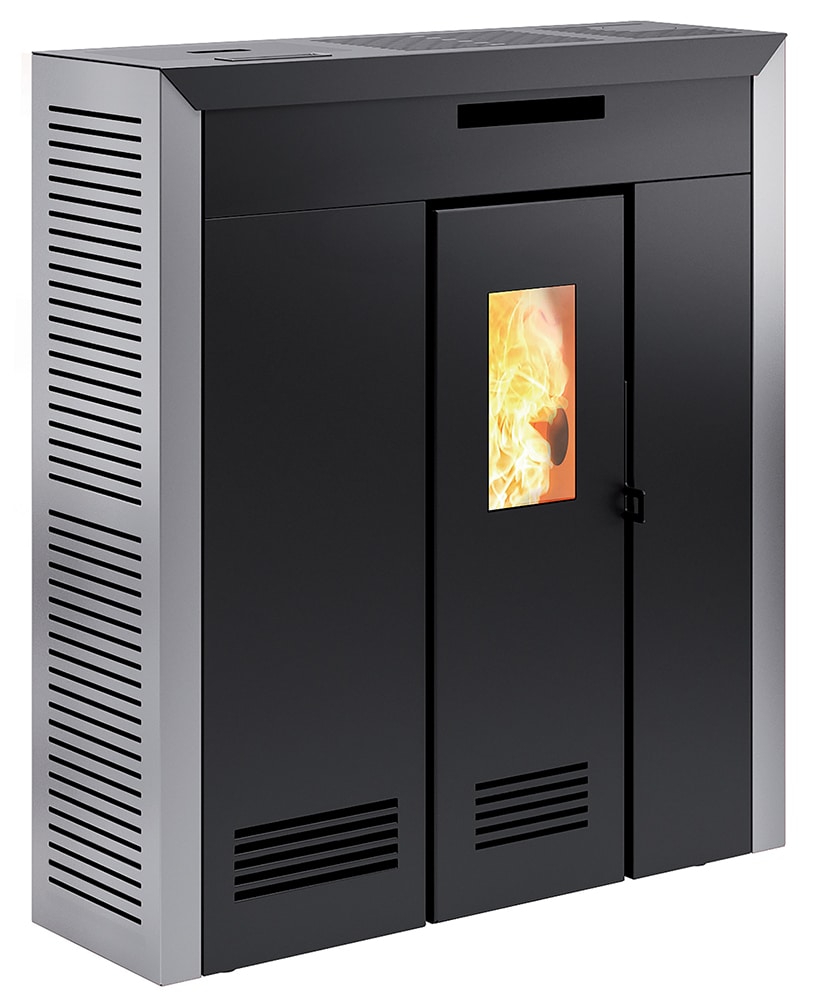

    Daglan Slim 9 Ductable

    Price range: £1.00 through £2.00

    The Daglan pellet stove occupies minimal space and offers maximum comfort thanks to its high performance, extended autonomy and programming possibilities. Self-contained unit, delivered assembled.

    Reference: N/A Category:

    Daglan Slim 9 Ductable

    Price range: £1.00 through £2.00

    The Daglan pellet stove occupies minimal space and offers maximum comfort thanks to its high performance, extended autonomy and programming possibilities. Self-contained unit, delivered assembled.

    Reference: N/A Category:
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Why this product?
    Ductable with dedicated fan

    An additional fan is dedicated to the distribution of ducted hot air.

    Extended warranty 1 year

    For pellet appliances, the 1-year warranty extension is conditional on the is conditional on the product being registered online.

    Hourly schedule

    *DAY: The unit has 2 daily programs so it can turn on and off twice per day
    *WEEK: the unit has 4 weekly programs so that you can program it to turn on and off 4 times per day, every day of the week.
    *WEEKEND: the unit has 2 programs for the weekend (Saturday, Sunday), which enable it to turn on and off twice per day

    Optional external thermostat control (not included)

    Air distribution connection lines are available as an option. Reference P690080: kit 2 connection lines & screws.

    Optional WiFi kit

    Possibility of connecting an optional Wifi kit to the pellet stove to control it remotely, from a mobile device.

    Regulate the flame or room temperature

    *Adjust operating power: 5 pre-programmed power settings managed automatically.
    *Adjust the preset temperature: you choose the desired ambiant temperature in the room. It is measured using a wire probe. The wood pellet stove adjusts its power to reach and maintain the requested value.

    Small footprint
    Standby

    Standby is a backup feature of the device. The unit turns off if the room temperature is 3°C higher than the temperature set for over 60 seconds. The unit turns on again when the room temperature drops 1°C below the temperature set.

    Ventilator for hot air output

    A tangential forced convection ventilator is used. It distributes the hot air inside the room.

    Features

    Optimal heat output (kW)
    9 kW
    Heat output adjustment (kW)
    4,3 – 9
    Heating volume (m³)
    125 to 275 m³
    Heating surface (m²)
    50 to 110 m²
    Flamme verte (environmental label)
    7 stars
    Useful efficiency (%)
    90,6 – 91,6
    Seasonal efficiency – ETAS
    80
    CO (%)
    0,007 – 0,055
    CO (mg/Nm³)
    85 – 682
    Dust (mg/Nm³)
    20 – 25
    GOC (mg/Nm³)
    2 – 12
    NOx (mg/Nm³)
    104 – 125
    Energy Efficiency Index (EEI)
    121
    Flue gas mass flow (g/s)
    5 – 6,3
    Flue gas temperature (°C)
    105 – 146
    Natural wood pellets
    length: 30 mm diameter: 6 mm
    Hopper capacity (kg)
    15 kg
    Consumption (kg/h)
    0,98 – 2,02
    Minimum autonomy (H)
    7 hours
    Maximum autonomy (H)
    15
    Loading
    Top
    Flue exit
    Top or Back
    Flue diameter (mm)
    80 mm
    Flue exit height from floor (mm)
    390
    Heating body
    Slim
    Tension (V) / frequency (Hertz)
    230 V / 50 Hertz
    Electric power (W)
    340
    Dimensions – H * W * D (mm)
    1035 x 930 x 280
    Weight (kg)
    103 kg
    Design
    Contemporain
    Material
    Steel
    Finish
    Painted steel cladding
    Color(s)
    Gris, Red
    Standard
    EN 14785-BlmSchV compliant
    Warranty
    2 years + extension 1 year*

    See all the features
