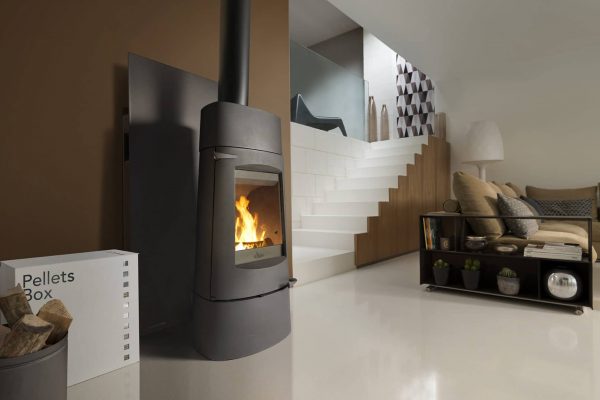

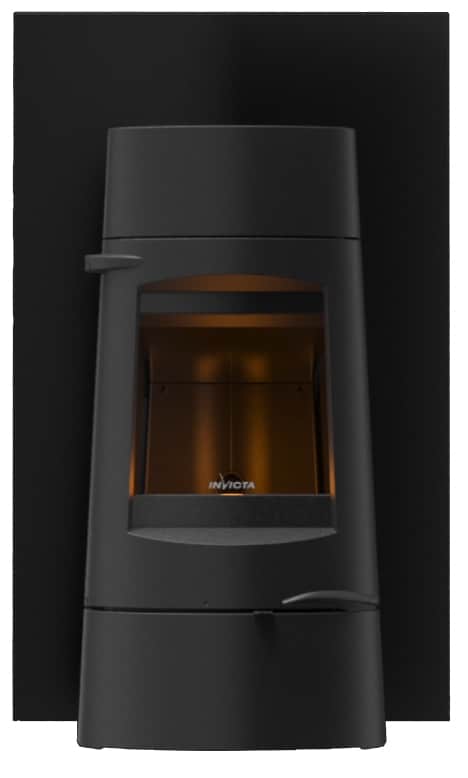

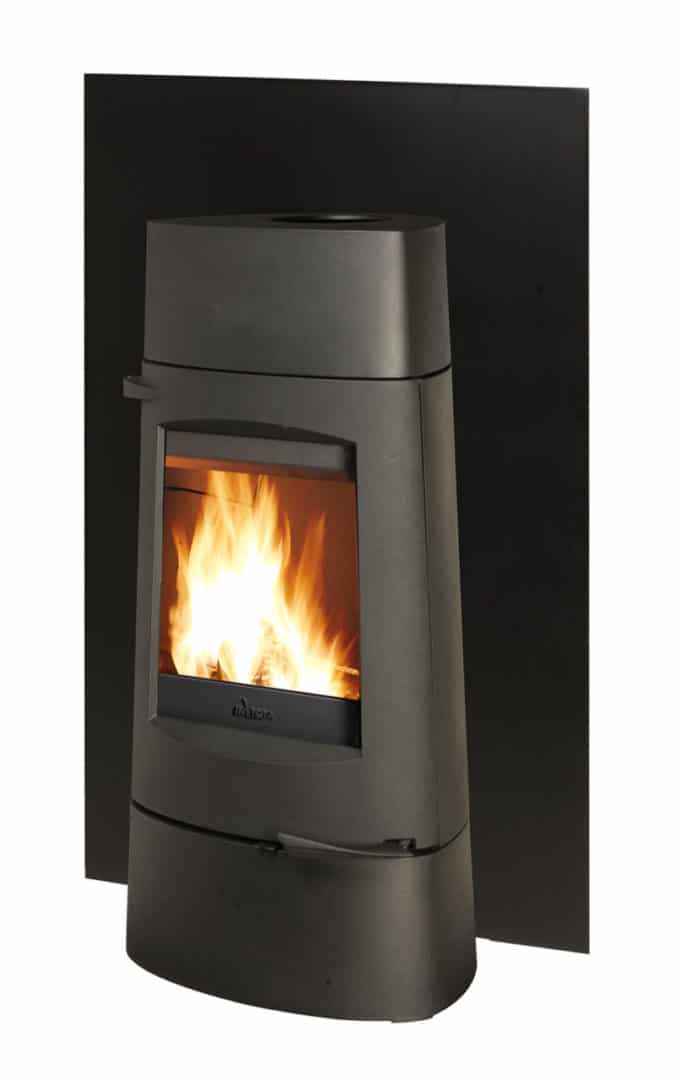

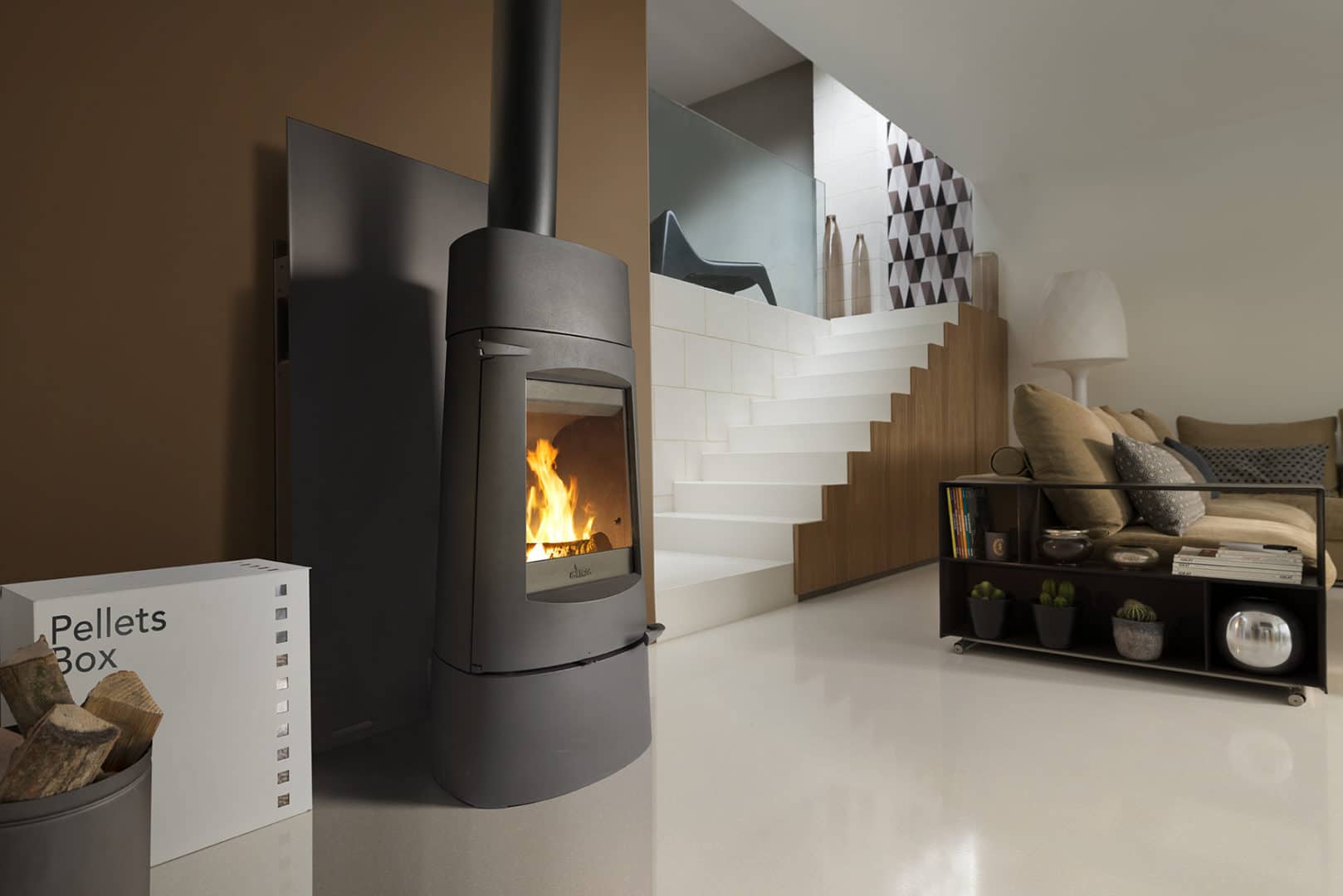

    Aratos Plug-IN Cast Iron Pellet Stove

    The hybrid Aratos Plug-IN stove uses logs to provide a beautiful blaze without the use of electricity. In pellet mode, the Aratos Plug-IN diffuses a soft and regulated heat. All this and quiet too!

    Aratos Plug-IN Cast Iron Pellet Stove

    The hybrid Aratos Plug-IN stove uses logs to provide a beautiful blaze without the use of electricity. In pellet mode, the Aratos Plug-IN diffuses a soft and regulated heat. All this and quiet too!

    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Why this product?
    Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Extended warranty 1 year

    For pellet appliances, the 1-year warranty extension is conditional on the is conditional on the product being registered online.

    Hybrid: logs and pellets
    Innovative wall module technique

    The Plug-IN technology is based on placing the technical portion of the stove in a clever wall module. This module has a high capacity (22 kg) reservoir that offers extended operating life (up to 31 hours). This wall module offers an additional technical feature. It acts as a shield to reduce the safe distance from the combustible materials. It can therefore be placed directly on the wall. Finally, it has a backlit control panel and conceals an accessory for filling the reservoir.

    Manual on/off
    Natural draft

    Smoke is extracted naturally through a depression in the chimney flue. This Plug-IN model can be installed like a traditional wood-burning stove. There is no smoke extractor, and thus no noise.

    Optional external thermostat control (not included)

    Air distribution connection lines are available as an option. Reference P690080: kit 2 connection lines & screws.

    Quiet natural convection unit

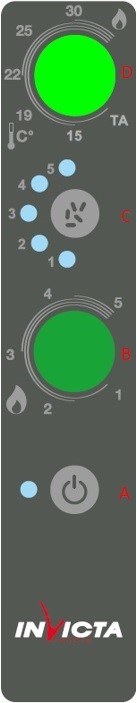

    Regulate the flame or room temperature

    *Adjust operating power: 5 pre-programmed power settings managed automatically.
    *Adjust the preset temperature: you choose the desired ambiant temperature in the room. It is measured using a wire probe. The wood pellet stove adjusts its power to reach and maintain the requested value.

    Features

    Optimal Heat Output (Logs – kW)
    7 kW
    Pellet power
    3.5 to 6 kW
    Heating surface (m²)
    40 – 85 m²
    Heating volume (m³)
    100 – 210 m³
    Flamme verte (environmental label)
    7 stars
    Useful efficiency (%)
    76 (bûches)
    Seasonal efficiency – ETAS
    66 (bûches)
    CO (%)
    0.09% (logs)
    CO (mg/Nm³)
    1125
    Dust (mg/Nm³)
    31 mg/Nm³ (logs)
    GOC (mg/Nm³)
    117
    NOx (mg/Nm³)
    160
    Energy Efficiency Index (EEI)
    100
    Flue gas mass flow (g/s)
    6,6
    Flue gas temperature (°C)
    356
    Combustible
    Logs 25, Logs 33 cm, Pellets
    Maximum log length (horizontally)
    40 cm
    Natural wood pellets
    length 30 mm – diameter 6 mm Max log size: 33 cm
    Hopper capacity (kg)
    22 kg
    Loading
    Wood: front – Pellets: top
    Minimum autonomy (H)
    14 hours
    Maximum autonomy (H)
    27 hours
    Consumption (kg/h)
    0,8 – 1,6
    Flue exit
    Dessus
    Flue diameter (mm)
    150 mm
    Tension (V) / frequency (Hertz)
    230 V / 50 Hertz
    Max. absorbed electrical power
    40 W
    Dimensions – H * W * D (mm)
    1300 x 800 x 602
    Weight (kg)
    163 kg
    Design
    Contemporain
    Material
    Cast Iron + Steel
    Finish
    Anthracite, Heating unit in anthracite cast iron, Wall hopper in painted steel
    Standard
    EN 13240 – BImSchV2
    Warranty
    2 years + extension 1 year*
