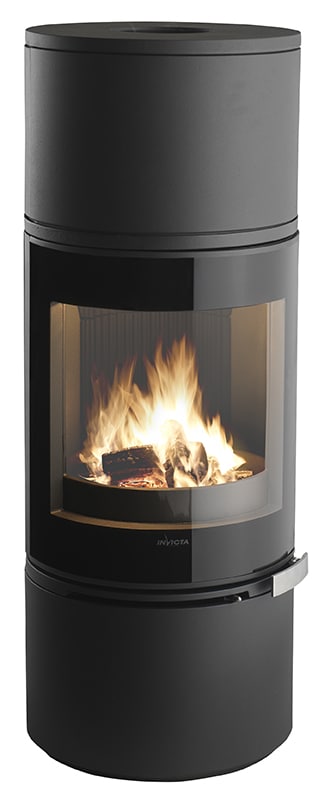

    Alcor Airtight Cast Iron Stove

    The Alcor promises you a bright future. Its wide angle panoramic window and elegant finish add an undeniable glow to the fire.

    Reference: P610744 Category:

    Alcor Airtight Cast Iron Stove

    The Alcor promises you a bright future. Its wide angle panoramic window and elegant finish add an undeniable glow to the fire.

    Reference: P610744 Category:
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Image 1
    Why this product?
    8 hour extended burning

    The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

    Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Air control

    Central combustion gearbox with a single control that offers: * simple, balanced management of all of the distributed air, * better control of flame height (min, normal, and max), * control over wood consumption, * cleaner, more efficient combustion, * a secondary air intake for more reliable protection of the glass * total shutdown of the air intake in the event of a prolonged shutdown of the unit.

    Airtight unit RT2012 / RE2020 compatible

    Ideal for low-energy consumption construction (BBC), RT2012 or RE2020. The unit is equipped with a central fresh air input on a connection nozzle:
    * no air intake in the room,
    * direct connection possible to crawl space or external air intake.

    Clean glass

    The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

    Extended warranty 3 years

    For log products, the free 3-year warranty extension is conditional on the product being registered online.

    Origine France Garantie (Made in France Guarantee)

    The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

    Post-combustion system

    Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

    Vermiculite-clad

    Firebox lined with removable vermiculite parts. Vermiculite’s thermal properties improve the combustion quality and the performance of the unit.

    Features

    Optimal power
    6 kW
    Heating volume (m³)
    80 to 180 m³
    Heating surface (m²)
    30 to 70 m²
    Flamme verte (environmental label)
    7 stars
    Useful efficiency (%)
    77
    Seasonal efficiency – ETAS
    67
    CO (%)
    0,10 %
    CO (mg/Nm³)
    1250
    Dust (mg/Nm³)
    40 mg/Nm³
    GOC (mg/Nm³)
    108
    NOx (mg/Nm³)
    160
    Energy Efficiency Index (EEI)
    102
    Flue gas mass flow (g/s)
    6
    Flue gas temperature (°C)
    305
    Combustible
    Logs 25, Logs 33 cm
    Maximum log length (horizontally)
    33 cm
    Loading
    Façade
    Flue exit
    Dessus
    Flue diameter (mm)
    150 mm
    Direct Air-supply (mm)
    80 mm
    Dimensions – H * W * D (mm)
    1200 x 450 x 450
    Weight (kg)
    198 kg
    Design
    Contemporain
    Material
    Fonte
    Finish
    Anthracite
    Certification
    EN 13240
    Warranty
    2 years + extension 3 years*
